Model:VLY40GF
Standard Configuration:
1. Diesel Engine:Yuchai
2. Alternator:Brush-less Stamford
3. Adjustment:Electrical
4. Start Type: DC 24V
5. Cooling type: Water cooling
6. Generator Type: Open type
7. Phase: Three phase

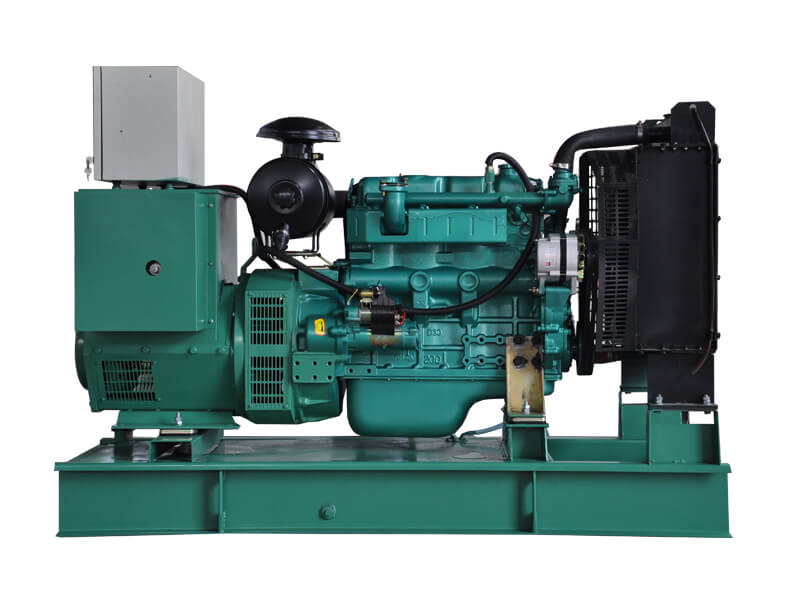

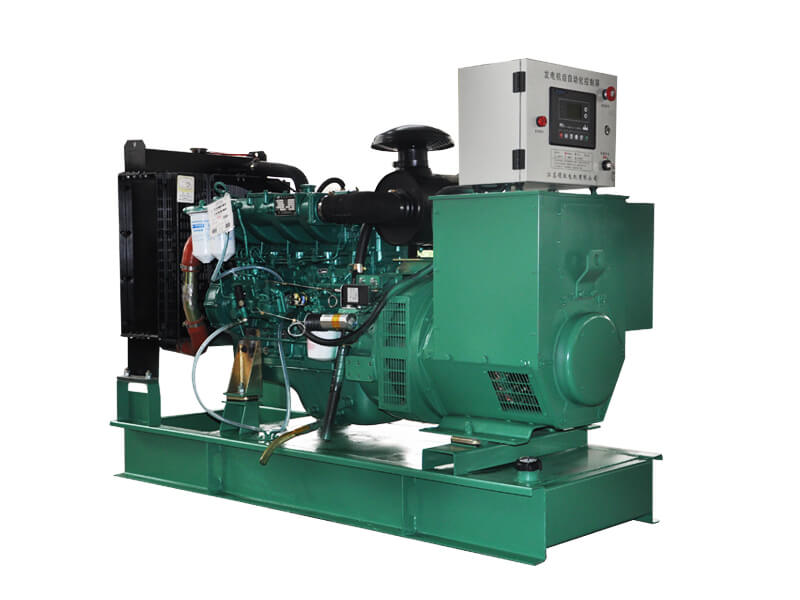

Data sheet For 40kw Diesel Generator
Generator Model | VLY40GF | Rated | 40KW/50KVA |
Diesel Engine | Yuchai | Max | 44KW/55KVA |
Engine Model | YC4D60-D21 | Phase | Three phase,Four wires |
Alternator | Brushless Stamford | Frequency | 50hz or 60hz |
Alternator Model | TFW40 | Voltage | 220/380/440 or as requirement |
Cooling | Water cooling | Type | Open model |
Governor | Electrical/Mechanical | Speed | 1500 or 1800rpm |
Optional
1. Soundproof canopy with daily use fuel tank
2. Automatic transfer switch system ATS
3. Mobile trailer with Four wheels or Two wheels
Features of Genset
1. Adopt reliable Cummins diesel engines 4/6/12 cylinders,mostly work as prime work or continuous in different areas.
2. Adopt highly quality alternators, make 100% power output,non-maintenance type.optional:Marathon/Faraday/Leroy-somer/Stamford etc famous brand.
3. Radiator with engine driven fan mounted on skid.
4. Anti-vibration mountings as to ensure the compete genset running under stablilization
5. Adopt Super durable Steel base,spray plating,tear application,prevent corrosion,prolong service life.
Advantage
6. Certificate: CE ,SGS
7. Suitable Market:Asia,Europe,Africa,America,Oceania etc.
Brand Engine Features/Advantage
Yuchai Series Generator Model List
Model | Diesel Generator | Diesel Engine | Alternator | L×W×H （mm） | Weight（KG） | 详细参数 | ||||
Prime Power (KW/KVA) | Max Power （KW/KVA） | Model | Power （KW） | Model | Power （KW/KVA） | |||||
VLY20GF | 20/25 | 22/28 | YC4F40-D20 | 29 | TFW20 | 20/25 | 1800×760×1430 | 800 | ||
VLY22GF | 22/28 | 24/30 | YC4F40-D20 | 29 | TFW22 | 22/28 | 1800×760×1430 | 830 | ||
VLY24GF | 24/30 | 26/33 | YC4F40-D20 | 29 | TFW22 | 24/30 | 1800×760×1430 | 846 | ||
VLY30GF | 30/37.5 | 33/41.25 | YC4115ZD | 30 | TFW30 | 30/37.5 | 1800×760×1430 | 880 | ||
VLY32GF | 32/40 | 35/44 | YC4D60-21 | 44 | TFW32 | 32/40 | 1800×760×1430 | 896 | ||
VLY34GF | 34/43 | 37/47 | YC4D60-21 | 44 | TFW34 | 34/43 | 1800×760×1430 | 906 | ||
VLY40GF | 40/50 | 44/55 | YC4D60-21 | 44 | TFW40 | 40/50 | 1900×760×1430 | 1030 | ||
VLY48GF | 48/60 | 53/66 | YC4D85Z-D20 | 62.5 | TFW48 | 48/60 | 1900×760×1430 | 1050 | ||
VLY58GF | 58/73 | 64/80 | YC4D90Z-D20 | 66 | TFW58 | 58/73 | 2150×830×1496 | 1215 | ||
VLY68GF | 68/85 | 74/94 | YC4A100Z-D20 | 73 | TFW68 | 68/85 | 2150×830×1496 | 1255 | ||
VLY80GF | 80/100 | 88/110 | YC6B135Z-D20 | 99 | TFW80 | 80/100 | 2150×830×1496 | 1300 | ||
VLY96GF | 96/120 | 106/132 | YC6B140L-D21 | 103 | TFW96 | 96/120 | 2150×830×1496 | 1335 | ||
VLY112GF | 112/140 | 123/154 | YC6B180L-D20 | 132 | TFW112 | 112/140 | 2150×830×1496 | 1425 | ||
VLY128GF | 128/160 | 141/176 | YC6A200L-D20 | 147 | TFW128F | 128/160 | 2450×850×1516 | 1695 | ||
VLY150GF | 150/187 | 165/206 | YC6230L-D20 | 169 | TFW150 | 150/187 | 2450×850×1516 | 1815 | ||
VLY160GF | 160/200 | 176/220 | YC6G245L-20 | 180 | TFW180 | 160/200 | 2540×945×1550 | 1874 | ||
VLY184GF | 184/230 | 202/253 | YC6M350L-D20 | 257 | TFW184 | 184/230 | 2540×945×1550 | 2020 | ||
VLY200GF | 200/250 | 220/275 | YC6M350L-D20 | 257 | TFW200 | 200/250 | 2540×945×1550 | 2080 | ||
VLY240GF | 240/300 | 264/330 | YC6MJ480L-D20 | 352 | TFW240 | 240/300 | 3150×1120×1630 | 2970 | ||
VLY260GF | 260/325 | 286/358 | YC6MJ480L-D20 | 352 | TFW260 | 260/325 | 3100×1100×1635 | 3198 | ||
VLY280GF | 280/350 | 308/385 | YC6MJ480L-D20 | 352 | TFW280 | 280/350 | 3100×1100×1635 | 3198 | ||
VLY304GF | 300/375 | 330/413 | YC6MJ480L-D20 | 352 | TFW300 | 300/375 | 3250×1190×1700 | 3200 | ||
VLY320GF | 320/400 | 352/440 | YC6T550L-D21 | 404 | HCI444F | 320/400 | 3300×1150×1700 | 3260 | ||
VLY350GF | 350/437.5 | 385/481 | YC6T550L-D21 | 404 | HC544CF | 350/437.5 | 3300×1150×1700 | 3260 | ||
VLY400GF | 400/500 | 440/550 | YC6T600L-D20 | 441 | HCI544C | 400/500 | 3500×1375×1980 | 3950 | ||
VLY450GF | 450/563 | 495/619 | YC6T700L-D20 | 514 | HCI544D | 450/563 | 3700×1750×2030 | 4200 | ||
VLY500GF | 500/625 | 550/688 | YC6T780L-D20 | 573 | HCI544FS | 500/625 | 3700×1750×2030 | 4200 | ||
VLY600GF | 600/750 | 660/825 | YC6TD840L-D20 | 617 | TFW600 | 600/750 | 3700×1750×2100 | 4500 | ||
VLY650GF | 650/813 | 715/893 | YC6C1020L-D20 | 750 | TFW650 | 650/813 | 4000×1750×2100 | 5200 | ||
VLY700GF | 700/875 | 770/963 | YC6C1070L-D20 | 786 | TFW700 | 700/875 | 4200×1600×2100 | 5600 | ||
VLY800GF | 800/1000 | 880/1100 | YC6C1220L-D20 | 897 | TFW800 | 800/1000 | 4600×1800×2500 | 7600 | ||
VLY880GF | 880/1100 | 968/1210 | YC6C1320L-D20 | 970 | TFW880 | 800/1000 | 5200×2150×2600 | 8000 | ||
VLY1000GF | 1000/1250 | 1100/1375 | YC12VC1680L-D20 | 1235 | TFW1000 | 1000/1250 | 5400×2150×2600 | 8500 | ||
VLY1100GF | 1100/1375 | 1210 | ||||||||
