Soundproof Generator 30kva Max 33kva with Ricardo K4100D Engine Stamford Alternator Enclosed Three Phase for Home Use

Standard Configuration:

1. Diesel Engine:Weifang Ricardo

2. Alternator:Brush-less Stamford

3. Adjustment:Electrical

4. Start Type: DC 12V

5. Cooling type: Water cooling

6. Generator Type: Open type/Silent

7. Phase: Three phase

Data sheet For 30KVA Diesel Generator

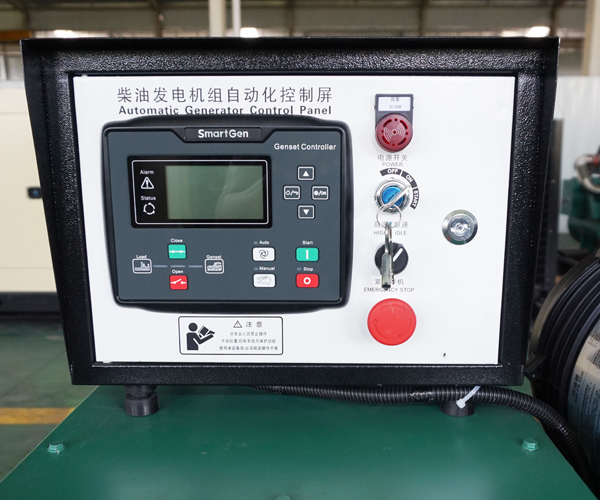

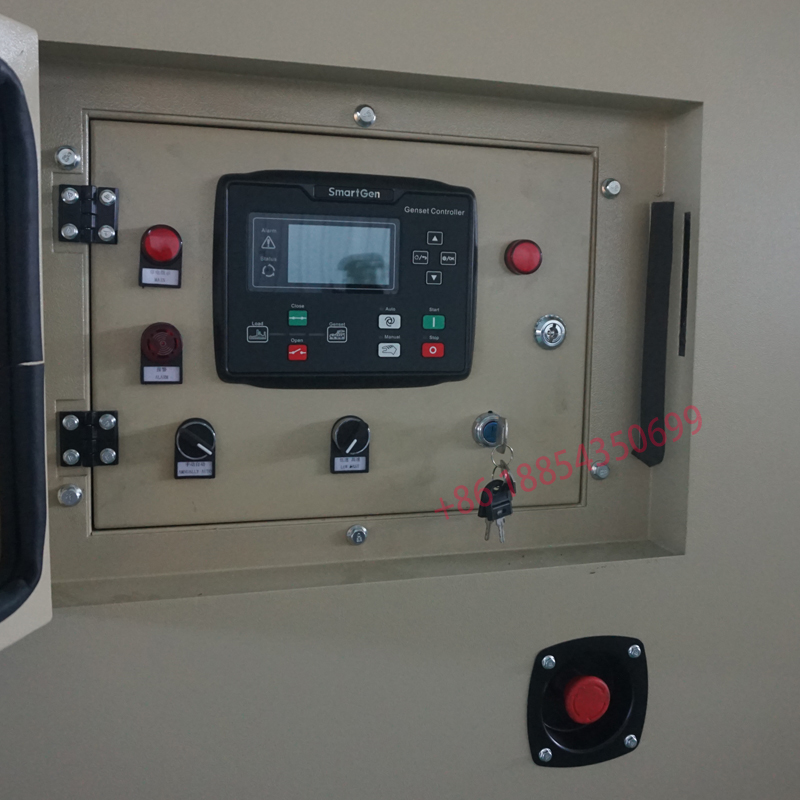

Diesel Generator Control Panel Features.

Adopt famous brand controller like Deep-sea/Smartgen etc.

Features of LCD digital panel,provide with the basic start-up/stop function for the units,and possessing the following basic configurations and functions:

1. Start-up/Stop controllers

2. Three phase AC current meter

3. Voltmeter selection and switches

4. Frequency meter/water temperature meter/oil temperature meter/timetable/battery voltmeter

5. Alarming functions:over speed,high water temperature,low oil pressure,and battery charging failure

6. Protection functions:low oil pressure,high water temperature,over speed,emergency stop and other preset protections.

No Mains(Voltage loss)Self-Staring Control Panel

Except the standard manual controlled panel function and configurations,this one is equipped with additional control interfaces.

Automatic mode/stop/manual mode function selection

Start-up delay reply(3-5 seconds,adjustable)

Stop delay relay(0-27 0 seconds,adjustable)

Three times automatic start-up time relay

Additional mains charger alarming indicator:low/over speed,output voltage faults,start-up failure,high water temperature pre-alarming,emergency stop

Additional protection functions:low/over speed,start-up failure,output voltage faults(over voltage,under voltage,overt current)

Weifang Ricardo Series Generator Model List
