VL100GF
WOAL
Model:VL100GF
Standard Configuration:
1. Diesel Engine:Weifang Ricardo
2. Alternator:Brush-less Stamford
3. Adjustment:Electrical
4. Start Type: DC 24V
5. Cooling type: Water cooling
6. Generator Type: Open type
7. Phase: Three phase
Data sheet For 100kw Diesel Generator
Generator Model | VL100GF | Rated | 100KW/125KVA |
Diesel Engine | Weifang Ricardo | Max | 110KW/138KVA |
Engine Model | R6105AZLD | Phase | Three phase,Four wires |
Alternator | Brushless stamford | Frequency | 50hz or 60hz |
Alternator Model | TFW100 | Voltage | 220/380/440 or as requirement |
Cooling | Water cooling | Type | Open model |
Governor | Electrical/Mechanical | Speed | 1500 or 1800rpm |

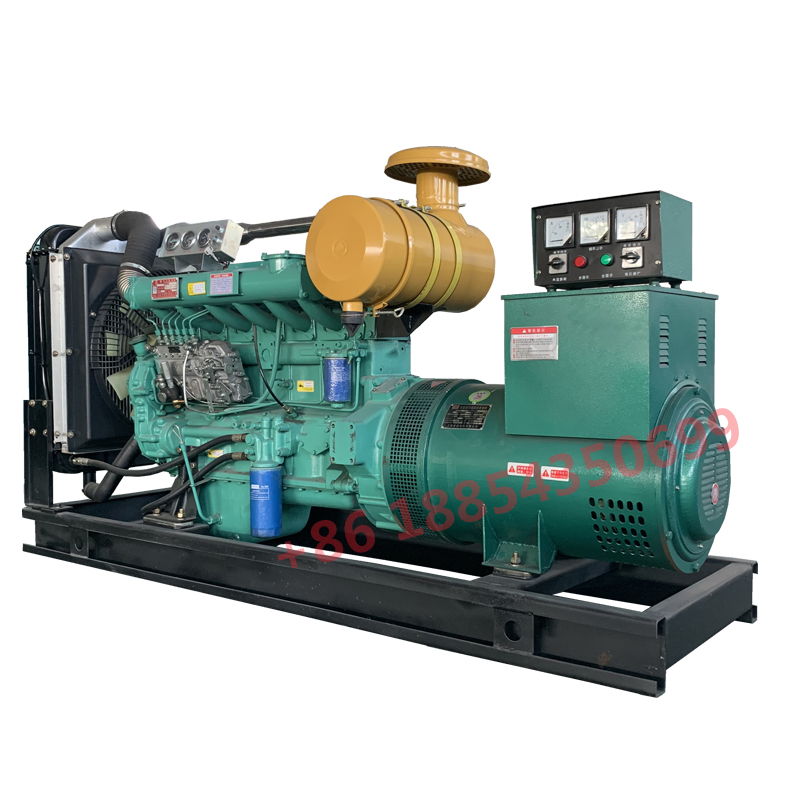

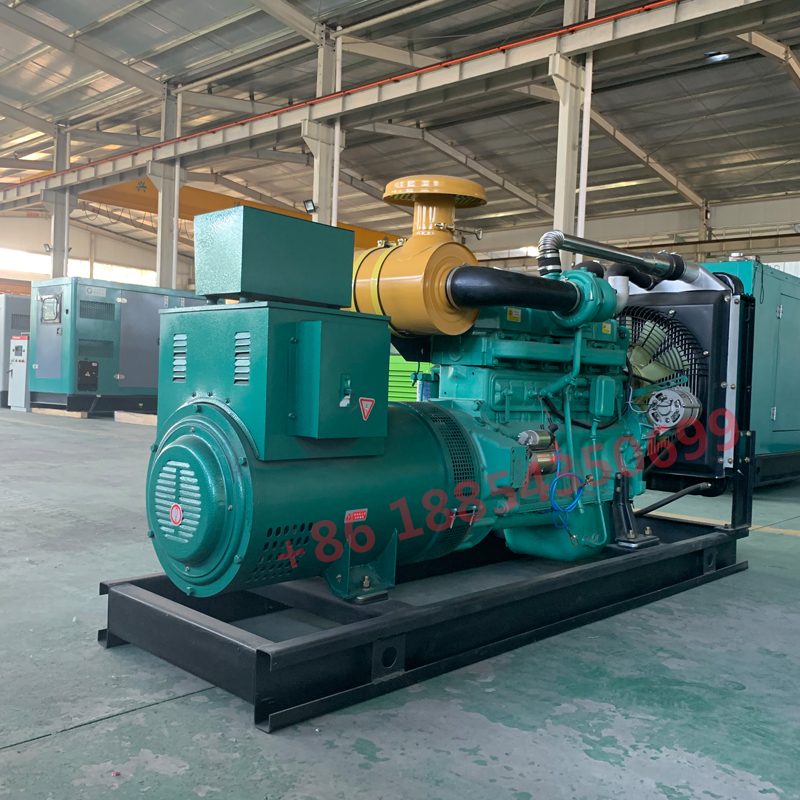

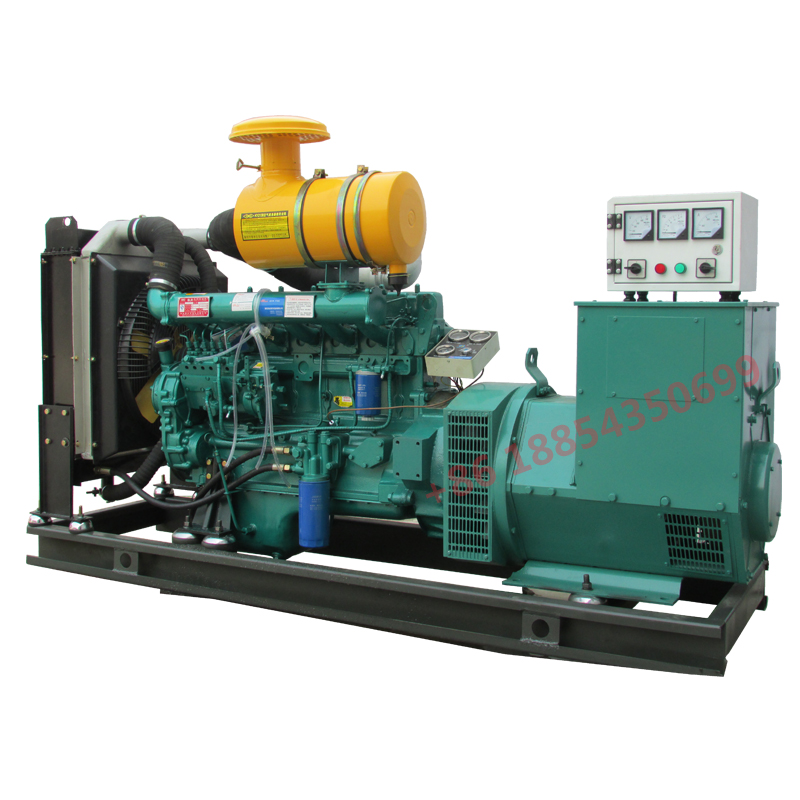

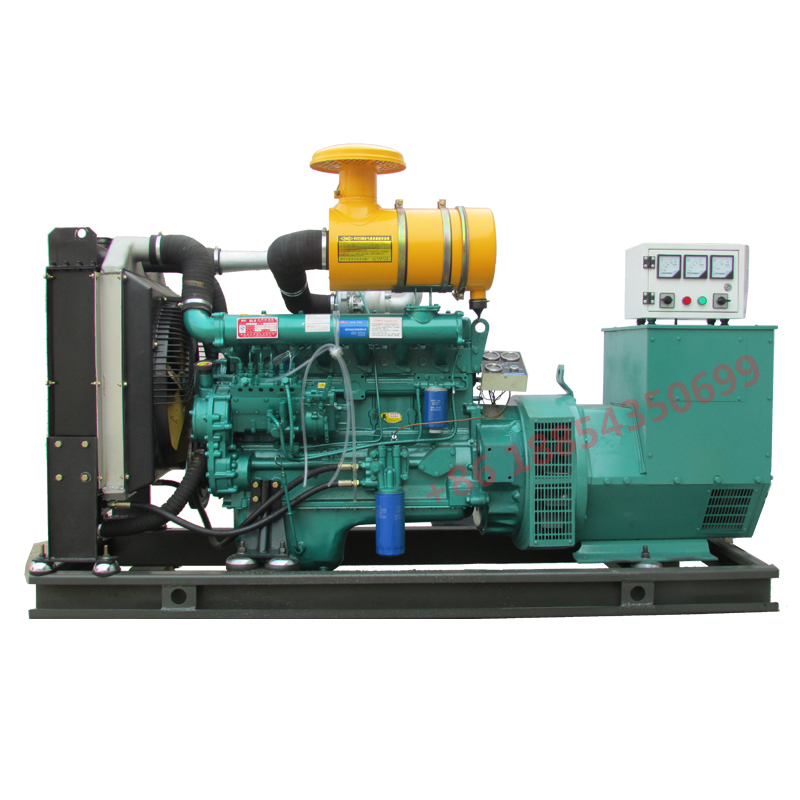

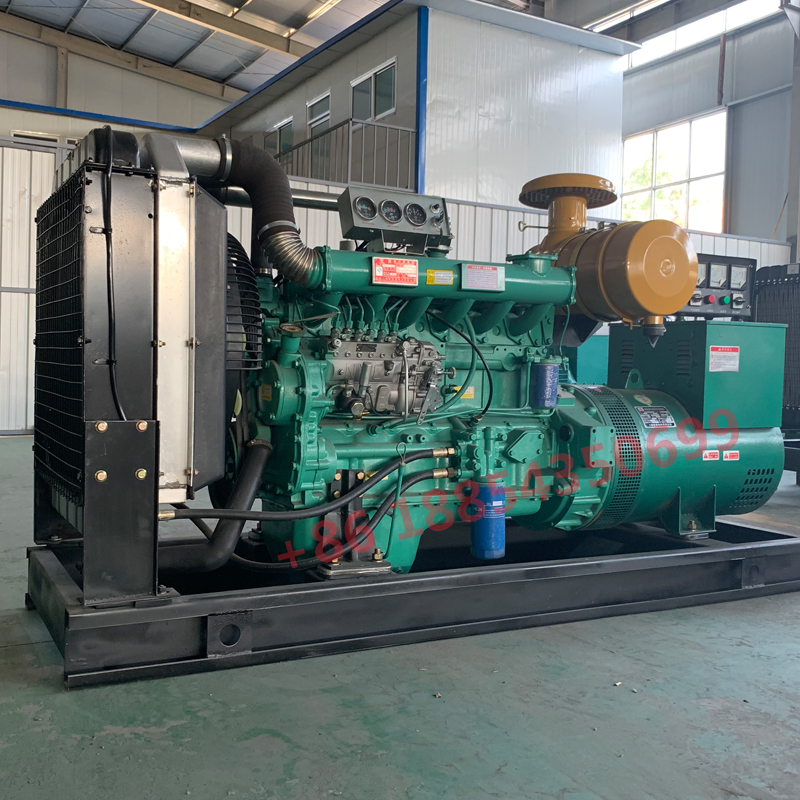

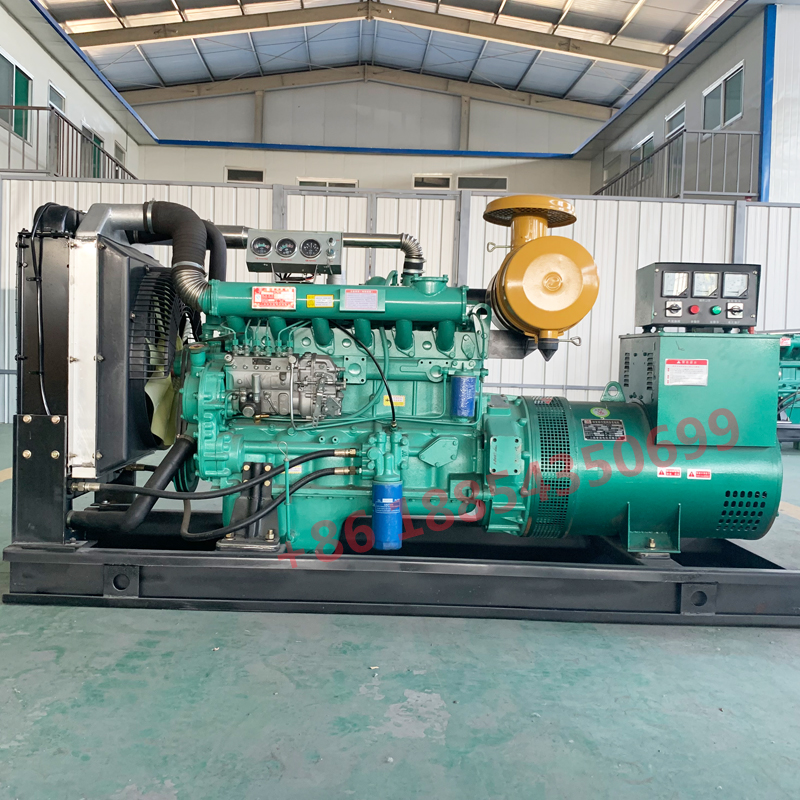

Pictures for 100KW/125KVA Weifang/Ricardo Series Diesel Generators
Optional
1. Soundproof canopy with daily use fuel tank
2. Automatic transfer switch system ATS
3. Mobile trailer with Four wheels or Two wheels
Features of Genset
1. Adopt reliable Weifang Ricardo series engines,Four cylinders, highly used for backup work in different areas.
2. Adopt highly quality alternators, make 100% power output,non-maintenance type.optional:Marathon/Faraday/Leroy-somer/Stamford etc famous brand.
3. Radiator with engine driven fan mounted on skid.
4. Anti-vibration mountings as to ensure the compete genset running under stablilization
5. Adopt Super durable Steel base,spray plating,tear application,prevent corrosion,prolong service life.
Advantage
6. Certificate: CE ,SGS
7. Suitable Market:Asia,Europe,Africa,America,Oceania etc.
Brand Engine Features/Advantage
British Ricardo technology production, with low fuel consumption, good power performance, safe and reliable operation. Ricardo types widely used in field construction, high-rise buildings, commercial buildings, industrial and mining enterprises, oil fields, highways, ports, villages and other places.Engines including 4/6 cylinders,power from 30kw-150kw etc.
Weifang Ricardo Series Generator Model List
Model | Diesel Generator | Diesel Engine | Alternator | Size | Weight | |||
Prime Power (kw/kva) | Standby Power (kw/kva) | Model | Rated Power (kw) | Model | Rated Power (kw/kva) | (L×W×H)mm | (kg) | |
VL15GF | 11/14 | 12/15 | 2100D | 15 | SWT-10.8 | 11/14 | 1550×620×960 | 400 |
VL20GF | 20/25 | 22/27.5 | K4100D | 30.1 | SWT-20 | 20/25 | 1600×640×1000 | 550 |
VL25GF | 25/31 | 28/35 | K4100D | 30.1 | SWT-25 | 25/31 | 1700×700×1100 | 580 |
VL30GF | 30/38 | 33/42 | K4100ZD | 40 | SWT-30 | 30/38 | 1700×700×1100 | 650 |
VL34GF | 34/43 | 38/47 | K4100ZD | 40 | SWT-34 | 34/43 | 1700×700×1100 | 700 |
VL40GF | 40/50 | 44/55 | K4100ZD | 40 | SWT-40 | 40/50 | 1870×720×1250 | 780 |
VL50GF | 50/62.5 | 55/68.75 | R4105ZD | 56 | SWT-50 | 50/62.5 | 2210×720×1380 | 850 |
VL60GF | 60/75 | 66/82.5 | R6105ZD | 84 | SWT-60 | 60/75 | 2210×720×1380 | 910 |
VL75GF | 75/94 | 75/94 | R6105ZD | 84 | SWT-75 | 75/94 | 2300×720×1550 | 1030 |
VL80GF | 80/100 | 88/110 | R6105AZLD | 110 | SWT-80 | 80/100 | 2300×720×1550 | 1300 |
VL90GF | 90/112.5 | 99/124 | R6105AZLD | 110 | SWT-90 | 99/124 | 2340×720×1550 | 1350 |
VL100GF | 100/125 | 110/138 | R6105AZLD | 110 | SWT-100 | 110/138 | 2550×740×1550 | 1400 |
VL120GF | 120/150 | 132/165 | R6105IZLD | 132 | SWT-120 | 120/150 | 2570×775×1725 | 2200 |
VL150GF | 150/187.5 | 165/206 | R6105IZLD | 156 | SWT-150 | 150/187.5 | 2800×800×1800 | 2900 |
VL180GF | 180/225 | 198/248 | 6126ZLD | 226 | SWT-180 | 184/230 | 2800×800×1800 | 3000 |
VL200GF | 200/250 | 220/275 | 6126ZLD | 226 | SWT-200 | 200/250 | 3000×850×1800 | 3200 |
VL250GF | 250/312.5 | 275/343 | 6126IZLD | 330 | SWT-250 | 250/312.5 | 3000×850×1800 | 3500 |
VL300GF | 300/375 | 330/412.5 | 6126IZLD | 330 | SWT-300 | 300/375 | 3000×850×1800 | 3800 |
