VL30GF
WOAL
Standard Configuration:
1. Diesel Engine:Weifang Ricardo
2. Alternator:Brush-less Stamford
3. Adjustment:Electrical
4. Start Type: DC 12V
5. Cooling type: Water cooling
6. Generator Type: Open type
7. Phase: Three phase
Data Sheet For 30kw Diesel Generator
Generator Model | VL30GF | Rated | 30KW/37.5KVA |
Diesel Engine | Weifang Ricardo | Max | 33KW/41.25KVA |
Engine Model | K4100D | Phase | Three phase,Four wires |
Alternator | Brushless stamford | Frequency | 50hz or 60hz |
Alternator Model | 30 | Voltage | 220/380/440 or as requirement |
Cooling | Water cooling | Type | Open model |
Governor | Electrical/Mechanical | Speed | 1500 or 1800rpm |

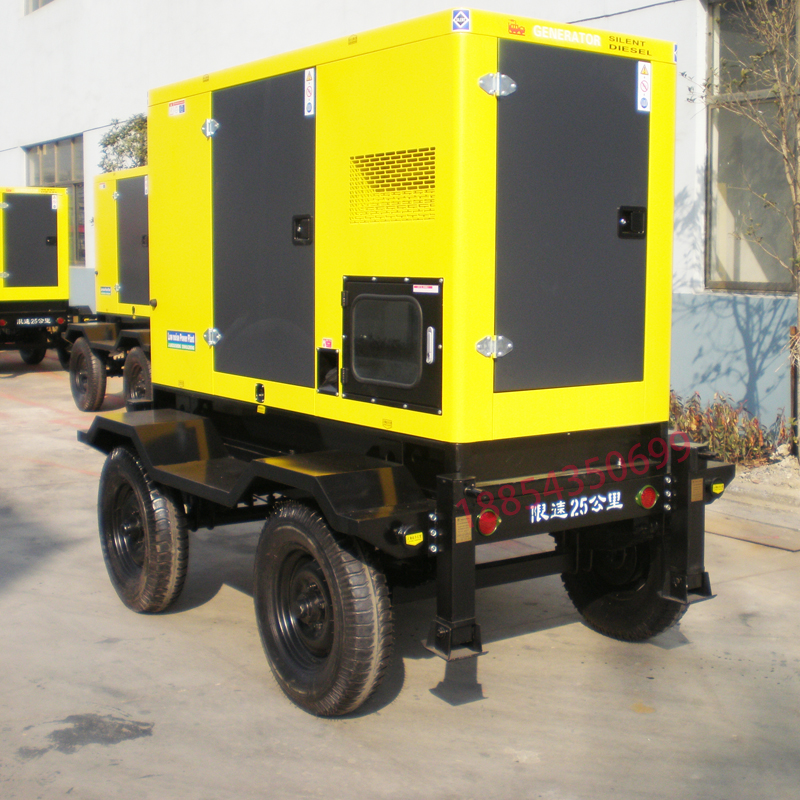

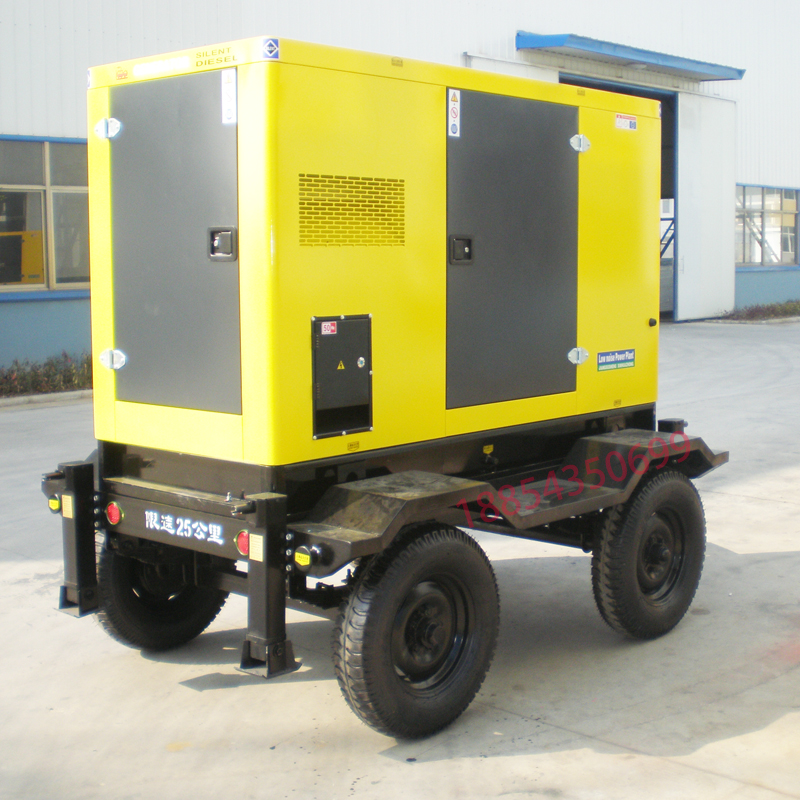

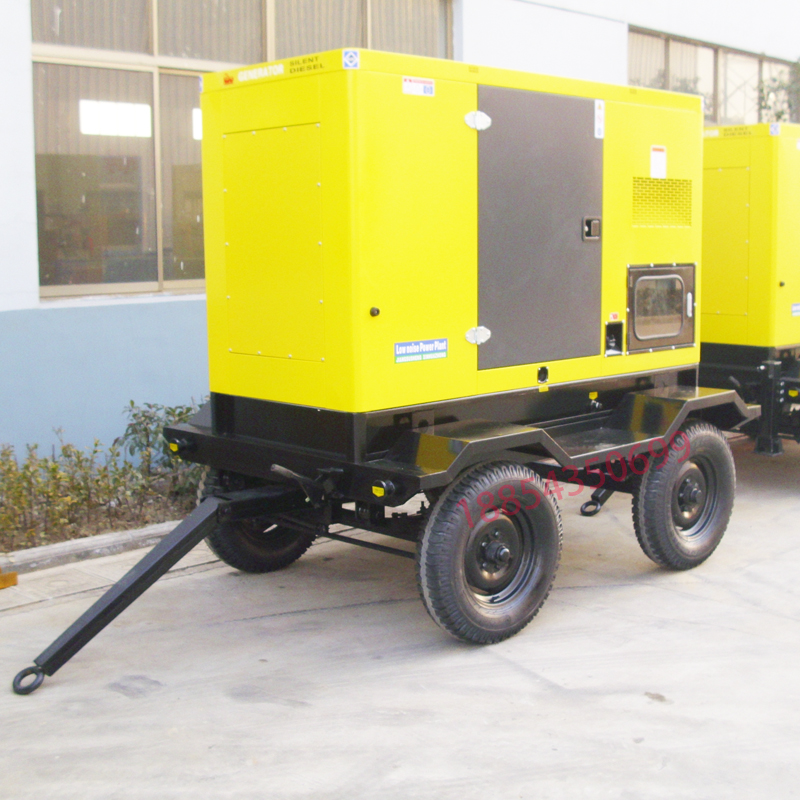

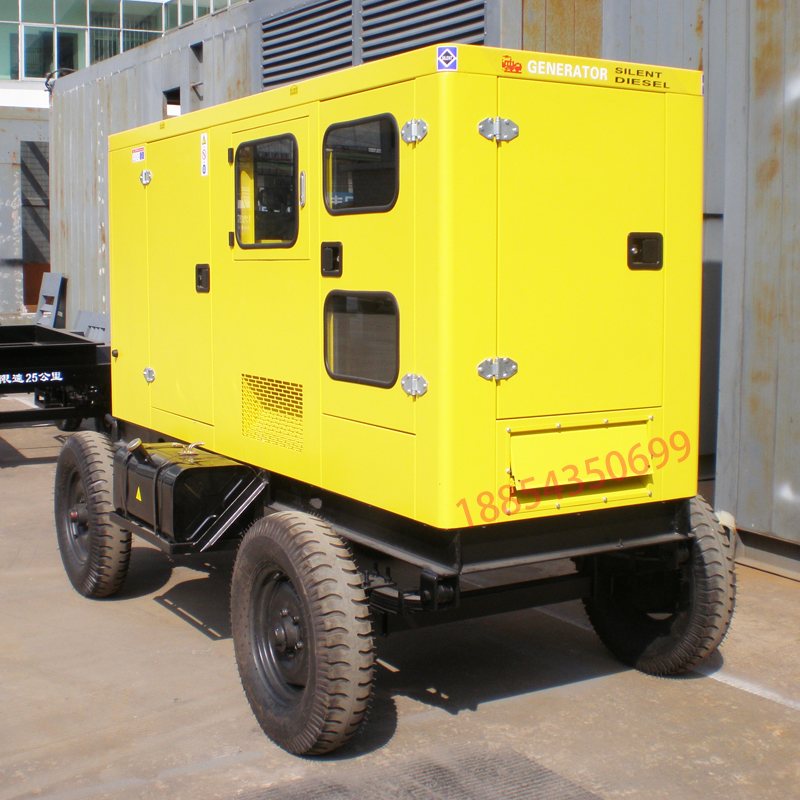

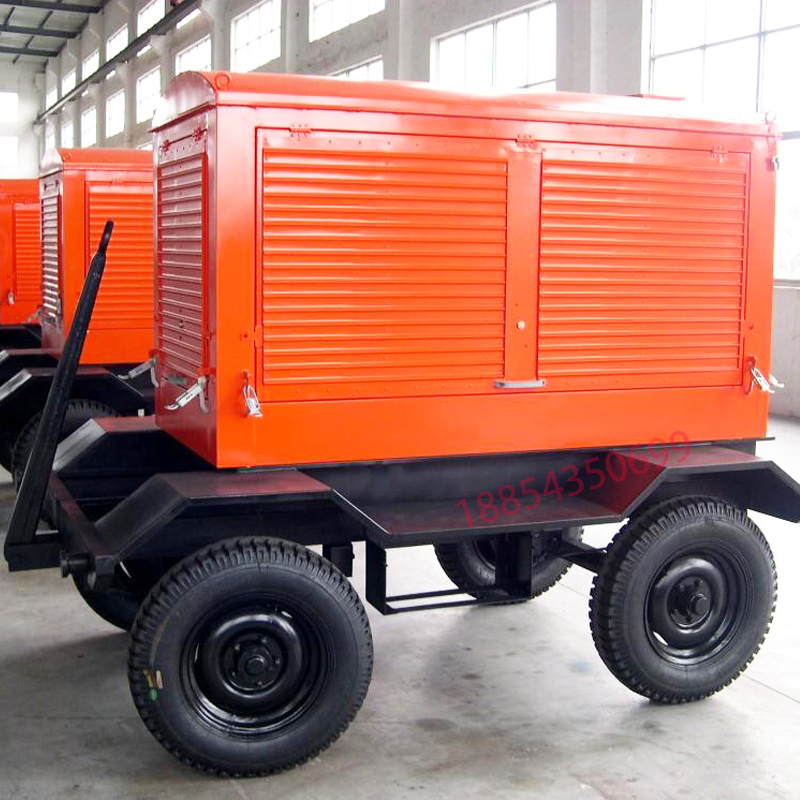

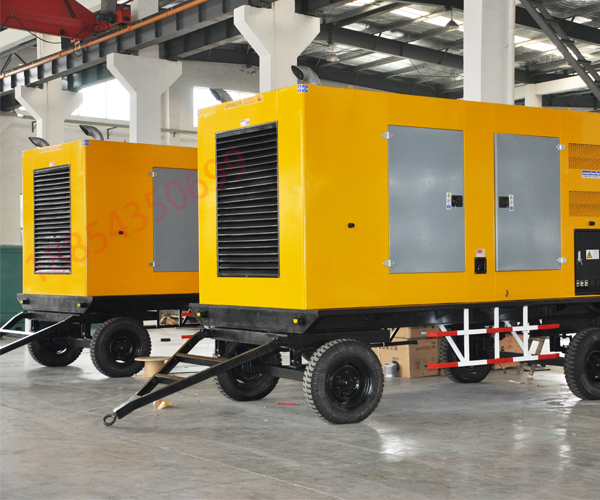

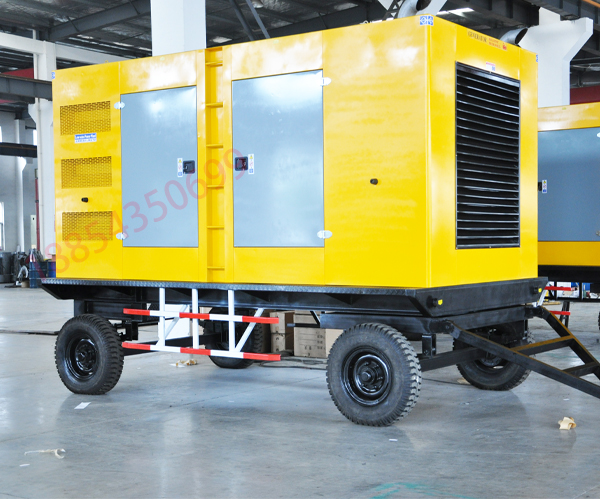

Mobile Diesel Generators Features
Mobile Diesel Generators is also called mobile power station,with reference to several foreign mobile power station structure.
Its self-designed and production of diverse structures,such as hand-push types, three wheels types,four wheels type, auto mobile power stations,mobile low-noise power stations,electric power truck and etc.
Trailer chassis is welded by beam channel with reasonably selected,high strength,and rigid nodes;
With movable hooks 180°turntable steering,flexible veer;Circular steel tube welding straight-through axle and its also installed with steel spring suspension structure.Frame corners with mechanical support device;
The Vehicle is equipped with steering and tail light.The carriages size according tto the size specifications,the operator can walk around and its easy to operate and maintain;
The color can be given by the owner to ensure the appearance artistic;The design is of unique innovation,high mobility,low gravity,excellent produce,beautiful appearance,compact structure,safe and reliable.
Mobile Trailer Options:
1.Power Capacity from 15kw to 500KW.
2.Diesel Motors optional of Weifang Ricardo Engines,Weicahi Engines,Deutz,Steyr,Perkins,Cummins,Volvo,Yuchai,Shangchai,Isuzu etc.
3.Alternator have choice for Stamford,Marathon,Faraday,Leroy-somer etc
4.Trailer types generators can be Silent/Soundproof type/Weatherproof type/Open typ etc.
5.Generators can be 50hz/60hz , Three Phase or Single phase etc.
6.Colors accept customized .
7.Offer Free project design or technical advice etc.
More Inquiries Feel Free Contact Us by Below:
Mobile/Wechat/Whatsapp: +86 18854350699
E-mail: volmachinery@126.com wuyuyuluo@live.cn
Skype: wuyuluoluo
Standard Configuration:
1. Diesel Engine:Weifang Ricardo
2. Alternator:Brush-less Stamford
3. Adjustment:Electrical
4. Start Type: DC 12V
5. Cooling type: Water cooling
6. Generator Type: Open type
7. Phase: Three phase
Data Sheet For 30kw Diesel Generator
Generator Model | VL30GF | Rated | 30KW/37.5KVA |
Diesel Engine | Weifang Ricardo | Max | 33KW/41.25KVA |
Engine Model | K4100D | Phase | Three phase,Four wires |
Alternator | Brushless stamford | Frequency | 50hz or 60hz |
Alternator Model | 30 | Voltage | 220/380/440 or as requirement |
Cooling | Water cooling | Type | Open model |
Governor | Electrical/Mechanical | Speed | 1500 or 1800rpm |
Mobile Diesel Generators Features
Mobile Diesel Generators is also called mobile power station,with reference to several foreign mobile power station structure.
Its self-designed and production of diverse structures,such as hand-push types, three wheels types,four wheels type, auto mobile power stations,mobile low-noise power stations,electric power truck and etc.
Trailer chassis is welded by beam channel with reasonably selected,high strength,and rigid nodes;
With movable hooks 180°turntable steering,flexible veer;Circular steel tube welding straight-through axle and its also installed with steel spring suspension structure.Frame corners with mechanical support device;
The Vehicle is equipped with steering and tail light.The carriages size according tto the size specifications,the operator can walk around and its easy to operate and maintain;
The color can be given by the owner to ensure the appearance artistic;The design is of unique innovation,high mobility,low gravity,excellent produce,beautiful appearance,compact structure,safe and reliable.
Mobile Trailer Options:
1.Power Capacity from 15kw to 500KW.
2.Diesel Motors optional of Weifang Ricardo Engines,Weicahi Engines,Deutz,Steyr,Perkins,Cummins,Volvo,Yuchai,Shangchai,Isuzu etc.
3.Alternator have choice for Stamford,Marathon,Faraday,Leroy-somer etc
4.Trailer types generators can be Silent/Soundproof type/Weatherproof type/Open typ etc.
5.Generators can be 50hz/60hz , Three Phase or Single phase etc.
6.Colors accept customized .
7.Offer Free project design or technical advice etc.
