| Quantity: | |
|---|---|
VLC30GF
Model:VLC30GF
Standard Configuration:
1. Diesel Engine:Cummins
2. Alternator:Brush-less Stamford
3. Adjustment:Electrical
4. Start Type: DC 24V
5. Cooling type: Water cooling
6. Generator Type: Open type/Silent
7. Phase: Three phase
Data sheet For 30KW/37.5KVA Diesel Generator
Generator Model | VLC30GF | Rated | 30KW/37.5KVA |
Diesel Engine | CUMMINS | Max | 33KW/41.2KVA |
Engine Model | 4BT3.9-G2 | Phase | Three phase,Four wires |
Alternator | Brushless Stamford | Frequency | 50hz or 60hz |
Alternator Model | TFW-30 | Voltage | 220/380/440 or as requirement |
Cooling | Water cooling | Type | Open model |
Governor | Electrical/Mechanical | Speed | 1500 or 1800rpm |

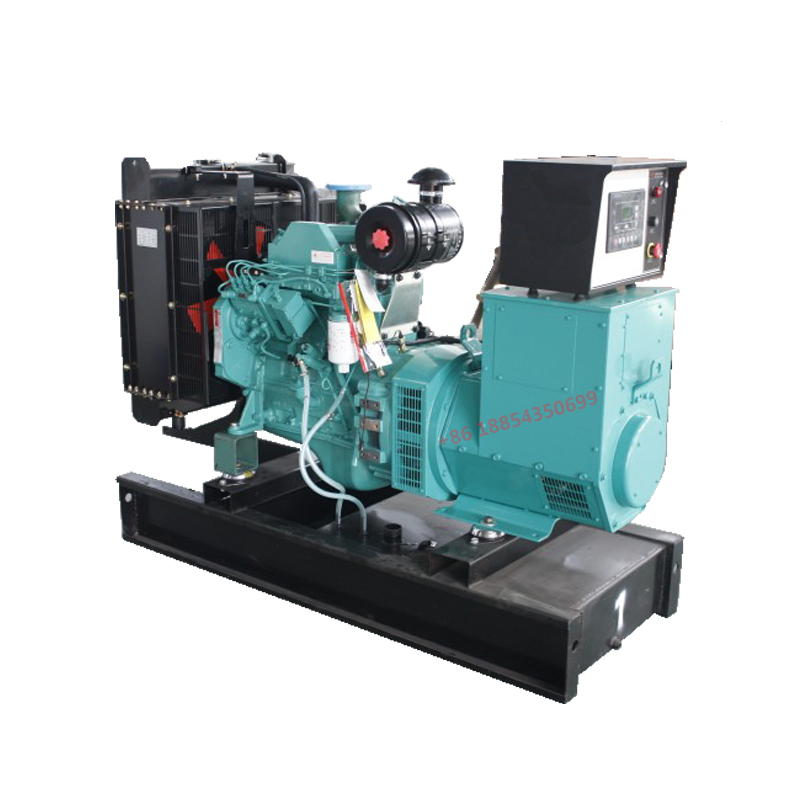

30KW CUMMINS DIESEL GENERATOR PICTURES
Optional
1. Soundproof canopy with daily use fuel tank
2. Automatic transfer switch system ATS
3. Mobile trailer with Four wheels or Two wheels
Features of Genset
1. Adopt reliable Cummins diesel engines 4/6/12 cylinders,mostly work as prime work or continuous in different areas.
2. Adopt highly quality alternators, make 100% power output,non-maintenance type.optional:Marathon/Faraday/Leroy-somer/Stamford etc famous brand.
3. Radiator with engine driven fan mounted on skid.
4. Anti-vibration mountings as to ensure the compete genset running under stablilization
5. Adopt Super durable Steel base,spray plating,tear application,prevent corrosion,prolong service life.
Advantage
6. Certificate: CE ,SGS
7. Suitable Market:Asia,Europe,Africa,America,Oceania etc.
Brand Engine Features/Advantage
Chongqing Cummins and Dongfeng Cummins are two Sino-US(US CUMMINS) joint ventures in China. The joint venture Cummins is an advanced manufacturer of diesel engines and compressed natural gas engines worldwide. Its products use advanced American manufacturing technology, products synchronize with Cummins technology of the United States and combine with the characteristics of the Chinese market, developed and designed with leading heavy-duty engine technology concepts, with strong power, high reliability, good durability, excellent fuel economy, small size, The product has the advantages of high power, high torque, large torque reserve, strong parts versatility, and safety and environmental protection.
CUMMINS Series Generator Model List
Model | Diesel Generator | Diesel Engine | Alternator | Size （mm） | Weight（KG） | |||
Prime Power (KW/KVA) | Max Power （KW/KVA） |
Model |
Power （KW） |
Model |
Power （KW/KVA） | |||
VLC16GF | 16/20 | 18/22 | 4B3.9-G1 | 24 | TFW16 | 16/20 | 1800×760×1430 | 780 |
VLC20GF | 20/25 | 22/28 | 4B3.9-G1 | 24 | TFW20 | 20/25 | 1800×760×1430 | 800 |
VLC22GF | 22/28 | 24/30 | 4B3.9-G1 | 24 | TFW22 | 22/28 | 1800×760×1430 | 830 |
VLC24GF | 24/30 | 26/33 | 4B3.9-G1 | 36 | TFW24 | 24/30 | 1800×760×1430 | 846 |
VLC28GF | 28/35 | 31/39 | 4BT3.9-G1 | 36 | TFW28 | 28/35 | 1800×760×1430 | 880 |
VLC32GF | 32/40 | 35/44 | 4BT3.9-G1 | 36 | TFW32 | 32/40 | 1800×760×1430 | 896 |
VLC34GF | 34/43 | 37/47 | 4BT3.9-G1 | 36 | TFW34 | 34/43 | 1800×760×1430 | 906 |
VLC40GF | 40/50 | 44/55 | 4BTA3.9-G2 | 50 | TFW40 | 40/50 | 1900×760×1430 | 1030 |
VLC48GF | 48/60 | 53/66 | 4BTA3.9-G2 | 50 | TFW48 | 48/60 | 1900×760×1430 | 1050 |
VLC58GF | 58/73 | 64/80 | 6BT5.9-G1 | 92 | TFW58 | 58/73 | 2150×830×1496 | 1215 |
VLC68GF | 68/85 | 74/94 | 6BT5.9-G1 | 92 | TFW68 | 68/85 | 2150×830×1496 | 1255 |
VLC80GF | 80/100 | 88/110 | 6BT5.9-G1 | 92 | TFW80 | 80/100 | 2150×830×1496 | 1300 |
VLC96GF | 96/120 | 106/132 | 6BTA5.9-G2 | 110 | TFW96 | 96/120 | 2150×830×1496 | 1335 |
VLC112GF | 112/140 | 123/154 | 6BTAA5.9-G2 | 120 | TFW112 | 112/140 | 2150×830×1496 | 1425 |
VLC128GF | 128/160 | 141/176 | 6 TA8.3-G2 | 163 | TFW128 | 128/160 | 2450×850×1516 | 1695 |
VLC144GF | 144/180 | 158/198 | 6 TA8.3-G2 | 163 | TFW144 | 144/180 | 2450×850×1516 | 1815 |
VLC160GF | 160/200 | 176/220 | 6 TAA8.3-G2 | 183 | TFW160 | 160/200 | 2540×945×1550 | 1874 |
VLC184GF | 184/230 | 202/253 | 6LTAA8.9-G2 | 220 | TFW184 | 184/230 | 2540×945×1550 | 2020 |
VLC200GF | 200/250 | 220/275 | 6LTAA8.9-G2 | 220 | TFW200 | 200/250 | 2540×945×1550 | 2080 |
VLC240GF | 240/300 | 264/330 | NTA855-G1A | 261 | TFW240 | 240/300 | 3150×1120×1630 | 2970 |
VLC260GF | 260/325 | 286/358 | NTA855-G1B | 283 | TFW260 | 260/325 | 3100×1100×1635 | 3198 |
VLC280GF | 280/350 | 308/385 | NTA855-G2A | 313 | TFW280 | 280/350 | 3100×1100×1635 | 3198 |
VLC304GF | 304/380 | 334/418 | NTAA855-G7 | 343 | TFW304 | 304/380 | 3250×1190×1700 | 3200 |
VLC320GF | 320/400 | 352/440 | NTAA855-G7A | 370 | TFW320 | 320/400 | 3300×1150×1700 | 3260 |
VLC400GF | 400/500 | 440/550 | KTA19-G4 | 457 | TFW400 | 400/500 | 3500×1375×1980 | 3950 |
VLC450GF | 450/563 | 495/619 | KTAA19-G5 | 470 | TFW450 | 450/563 | 3700×1750×2030 | 4200 |
VLC500GF | 500/625 | 550/688 | KTAA19-G6A | 554 | TFW500 | 500/625 | 3700×1750×2030 | 4200 |
VLC600GF | 600/750 | 660/825 | KTA38-G2 | 664 | TFW600 | 600/750 | 4490×1630×2430 | 7800 |
VLC640GF | 640/800 | 704/880 | KTA38-G2 | 664 | TFW640 | 640/800 | 4490×1630×2430 | 8500 |
VLC720GF | 720/900 | 792/990 | KTA38-G2A | 813 | TFW720 | 752/940 | 4490×1630×2430 | 8560 |
VLC800GF | 800/1000 | 880/1100 | KTA38-G5 | 880 | TFW800 | 824/1030 | 4510×1850×2500 | 9120 |
VLC900GF | 900/1125 | 990/1238 | KTA38-G9 | 990 | TFW900 | 900/1125 | 4850×1850×2500 | 9400 |
VLC1000GF | 1000/1250 | 1100/1375 | KTA50-G3 | 1115 | TFW1000 | 1008/1260 | 4950×2080×2560 | 10120 |
VLC1200GF | 1200/1500 | 1320/1650 | KTA50-G8 | 1299 | TFW1200 | 1240/1550 | 5400×2195×2560 | 10600 |
